TSL100 TSL150 TSL160 Rotary Table

Short Description:

TSL SERIES ROTARY TABLE FEATURES: 1.TSL vertical & horizontal rotary table is one of the main accessory of milling machine, it is used for index boring, 2.milling, circle cutting, spot facing and boring hole etc on milling machine. 2.Rotary table in vertical with tailstock working together, it can used on complex work for circle index boring and milling. 3.As SPECIFICATIONS: MODELS TSL100 TSL160 TSL200 TSL250 TSL320 TSL400 Diameter of table mm 100 160 200 …

Send email to us

Product Detail

Product Tags

Features

1.TSL vertical & horizontal rotary table is one of the main accessory of milling machine, it is used for index boring, milling, circle cutting, spot facing and boring hole etc on milling machine.

2.Rotary table in vertical with tailstock working together, it can used on complex work for circle index boring and milling.

3.As clients' special requirements the TSL with left handwheel can be offered.

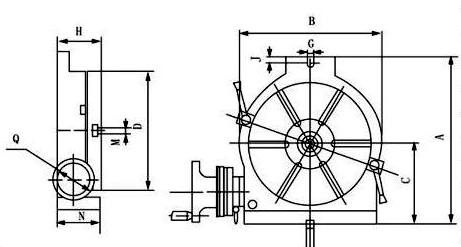

Specifications

Models	TSL100	TSL160	TSL200	TSL250	TSL320		TSL400
Diameter of table mm	100	160	200	250	320		400
Morse taper of center hole	MT2		MT3			MT4
Dia.of center hole	ø20X8	ø25X6	ø30X6			ø40X10
Center height for Vert. Mounting mm	70	125	150	170	210	260
Width of T-slot mm	6	10	12			14
Adjacent angle of T-slot	90°				60°
Width of locating key mm	10	12	14			18
Transmission radio of worm gear	1:72	1:90
Readout of handwheel	2'	1'
Min.value of vernier	10"
Indexing accuracy	120"	80"	60"
Max.workload (Hor.) kg	20	100	150	200	250	300
Max.workload (Vert.) kg	10	50	75	100	125	150
N.W. kg	7	23	31.5	46	77	150
G.W. kg	8	30	42	57	92	175
Case dimensions mm	245X165X112	432X432X220	450X440X235	510X460X240	590X580X250	750X684X286
