TSK SERIES Rotary Table
Features
This is an accurate designed table for milling, boring and other machine tools. This table allows indexing, facing and other
work to be carried out rapidly with extreme precision.
Tiliting range 0-90 degrees from horizontal to vertical position, 1 rotation of handle equals 3 degrees, 5 minutes tilting reading.
10 Second Vernier Scale.
Table Dial 1 Minute Graduations.
Fast Degrees: Dividing Notch Pin & 24 Holes in 15 Degrees Around The insures Rapid Accurate Spacing.
Minimum Set-up time
Rugged Construction
Specifications
|
Specifications |
TSK160 |
TSK250 |
TSK320 |
TSK400 |
|
Diameter of table (mm) |
Φ160 |
Φ250 |
Φ320 |
Φ400 |
|
Mose taper of the center hole |
MT2 |
MT3 |
MT4 |
MT4 |
|
Diameter of the center hole(mm) |
Φ25*6 |
Φ30*6 |
Φ40*10 |
Φ40*10 |
|
Width of t-slot (mm) |
10 |
12 |
14 |
14 |
|
Adjacent angle of t-slot |
90° |
60° |
60° |
60° |
|
Width of the locating key(mm) |
12 |
14 |
18 |
18 |
|
Modules of worm and worm gear |
1.5 |
2 |
2.5 |
3.5 |
|
Transmission ratio of the worm gear |
1:90 |
|||
|
Graduation of the table |
360° |
360° |
360° |
360° |
|
Tilting table |
0°~90° |
0°~90° |
0°~90° |
0°~90° |
|
Readout of the hand wheel |
1’ |
1’ |
1′ |
1′ |
|
Minimum value of vemier |
10" |
10" |
10" |
10" |
|
Minimum reading of the tilting vemier |
2’ |
2’ |
2’ |
2’ |
|
Indexing accuracy |
60" |
60" |
60" |
60" |
|
Max bearing(with table hor)kg |
100 |
200 |
250 |
300 |
|
Max bearing(with table vert)kg |
50 |
100 |
125 |
150 |
|
Net weight kg |
36 |
80 |
135 |
280 |
|
Gross weight kg |
44 |
93 |
150 |
305 |
|
Case dimensions mm |
420*380*300 |
550*430*330 |
630*490*395 |
830*600*460 |

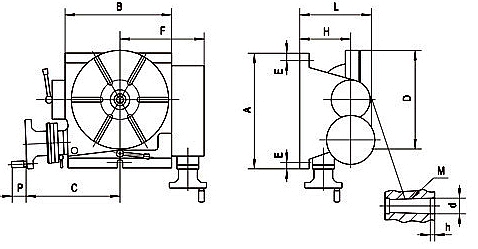

Installation sketch and dimension:
|
Model |
TSK160 |
TSK200 |
TSK250 |
TSK320 |
TSK400 |
|
A |
255 |
296 |
310 |
380 |
500 |
|
B |
172 |
213 |
252 |
322 |
400 |
|
C |
168 |
186 |
235 |
252 |
306 |
|
D |
Φ160 |
Φ200 |
Φ250 |
Φ320 |
Φ400 |
|
E |
11 |
14 |
16 |
||
|
F |
138 |
175.5 |
199 |
241 |
295 |
|
H |
100 |
120 |
140 |
175 |
217 |
|
L |
160 |
180 |
205 |
255 |
320 |
|
M |
MT2 |
MT3 |
MT4 |
||
|
P |
40 |
50 |
|||
|
d |
F25 |
Φ30 |
40 |
||
