F11 SERIES UNIVERSAL DIVIDING HEAD
Features
This series is one of the most important attachment for milling machine. with the help of this dividing head the workpiece held between centers, or on a chuck can be rotate to any angle as desired and the periphery of a workpiece can be divided into any divisions of equal parts. By means of all kinds of cutters, the dividing head can also help milling machine to perform the milling operation for flute spur gear, spiral gear, spiral flute, Archimedean cam, helical flute and etc.
Specifications
|
SPECIFICATION |
F11 100A |
F11 125A |
F11 160A |
F11200A |
||||||
|
Center Height mm |
100 |
125 |
160 |
200 |
||||||
|
Swivel angle of spindle from it's horizontal position (upward) |
≤95° |
|||||||||
|
Horizontal position(downward) |
≤5° |
|||||||||
|
Rotating angle of spindle for one complete revolution of dividing handle |
9°(540 GRAD;1'each |
|||||||||
|
Min. reading of vernier |
10" |
|||||||||
|
Worm gear ratio |
1:40 |
|||||||||
|
Taper of spindle bore |
MT3 |
MT4 |
||||||||
|
Width of locating key mm |
14 |
18 |
||||||||
|
Dia. Of short taper of spindle nose for mounting flange mm |
41.275 |
53.975 |
||||||||
|
Hole numbers on index plate |
1st plate |
24,25,28,30,34,37,38,39,41,42,43 |
||||||||
|
2nd plate |
46,47,49,51,53,54,57,58,59,62,66 |
|||||||||
|
Change gear |
Module |
1.5 |
2 |
|||||||
|
teeth numbers |
25,30,35,40,50,55,60,70,80,90,100 |
|||||||||
|
Individual indexing error of the spindle for one complete revolution of dividing handle |
±45" |
|||||||||
|
Cumulate error at any 1/4 periphery of spindle |
±1' |
|||||||||
|
Max.bearing (kg) |
100 |
130 |
130 |
130 |
||||||
|
Net weight(kg) |
67 |
101.5 |
113 |
130 |
||||||
|
Gross weight(kg) |
79 |
111.5 |
123 |
140 |
||||||
|
Packing size(mm) |
616x465x265 |
635x530x530 |
710x535x342 |
710x535x342 |
||||||

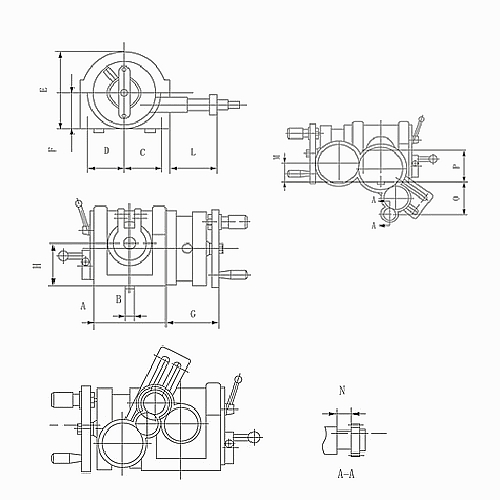

F11 SERIES INSTALLATION SKETCH AND DIMENSIONS
|
Model |
A |
B |
C |
D |
E |
F |
G |
H |
L |
M |
N |
O |
P |
|
F11100A |
162 |
14 |
102 |
87 |
186 |
95 |
116 |
100 |
93 |
54.7 |
30 |
100 |
100 |
|
F11125A |
209 |
18 |
116 |
98 |
224 |
117 |
120 |
125 |
103 |
68.5 |
34.5 |
100 |
125 |
|
F11160A |
209 |
18 |
116 |
98 |
259 |
152 |
120 |
160 |
103 |
68.5 |
34.5 |
100 |
160 |
|
F11120A |
209 |
18 |
116 |
98 |
299 |
192 |
120 |
200 |
103 |
68.5 |
34.5 |
100 |
200 |
ACCESSORIES:
1.Tailstock 2.Change gear bracket 3.12pcs change gear 4.jack 5.Center 6.Dividing plate 7.Flange 8.3-jaw chuck
9.Round table(optional)
